Standard FKM Skeleton Oil Seal Rotating Shaft Seal Brown Oil Seals Corrosion Resistant

Nombre De La Marca:	CCO
Número De Modelo:	TC Oil Seal
MOQ:	Negotiable
Precio:	Negociable
Detalles Del Embalaje:	Paper+Carton Box
Condiciones De Pago:	L/C, T/T, Western Union

Información detallada

Descripción de producto

Información detallada

Place of Origin:

China

Shape:

Round

Temperature Range:

-26°C to 250°C

Color:

Brown

Tolerance:

±0.05mm

Size Range:

4mm to 300mm

Application:

Automotive, Industrial, Agricultural

Sample:

Available

Package:

Carton Box

Supply Ability:

10000/week

Resaltar:

FKM skeleton oil seal

rotating shaft oil seal

corrosion resistant TC oil seal

Descripción de producto

Standard FKM Skeleton Oil Seal Rotating Shaft Seal Brown Oil Seals Corrosion Resistant

Feature

This FKM fluorocarbon rubber TC-type oil seal is made from high-purity fluorocarbon rubber and is available in multiple specifications. Its brown appearance makes it suitable for a variety of applications. It has a temperature resistance range of -26°C to 250°C, is resistant to hydraulic oil and chemical solvent corrosion, and features a double-lip structure with a spiral spring. It achieves zero leakage at 1.6 MPa pressure, and the dust-proof lip effectively blocks contaminants. It is an ideal choice for automotive transmissions, industrial hydraulic equipment, and food machinery.

Installation steps:

Clean the shaft diameter and installation cavity, remove burrs, oil stains, and metal debris to ensure a smooth surface;
Check that the oil seal model matches the installation position dimensions, and apply a small amount of compatible lubricant to the lip;
Use a special installation tool to hold the outer ring of the oil seal (avoid touching the lip), and push it evenly into the installation position to ensure that it is not skewed;
After installation, inspect the oil seal to ensure it is properly seated against the cavity end face, the lip is tightly wrapped around the shaft surface, and there are no signs of distortion or spring detachment.

Brand Name	CCO
Original	Hebei,China
Material	NBR/FKM/ACM/SILICONE
Used	Automobile Industry Industrial Machinery Agricultural Machinery
Sample	Available
Size	Standard
Features	Oil Resistance, Heat Resistance,Wear Resistance

Other Types

Type	Features

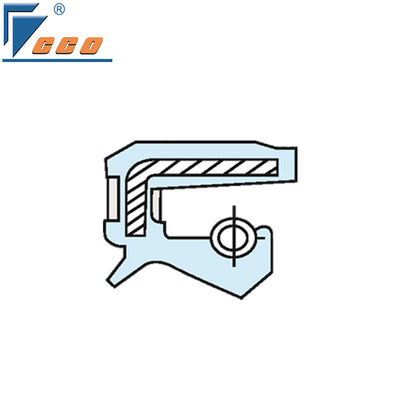

TC	The outer part is rubberized design, double lip with spring
SC	The outer part is rubberized design, double lip with spring
TB	The outer layer is an iron shell, double lip with spring
SB	The outer layer is an iron shell, double lip with spring
TA	The design of the inner shell combination is used to strengthen the steel of the oil seal,double lip with spring
EC	It is mainly used for the orifice core of the oil seal and the bearing, mainly for the gear box and other parts
SA	The design of the inner shell combination is used to strengthen the steel of the oil seal,double lip with spring
DKB	The outer iron shell is fluted and has a dual lip dust seal.
TCN	The exterior is iron on one side and rubber on the other, with springs on both lips
TCV	Outer layer is rubber, inner skeleton, double lip with spring
VG	Surface threaded, single lip without spring
VB	Outside is iron shell, inside is rubber, single lip without spring
VC	The outer part is rubberized, single lip without spring

Details Images

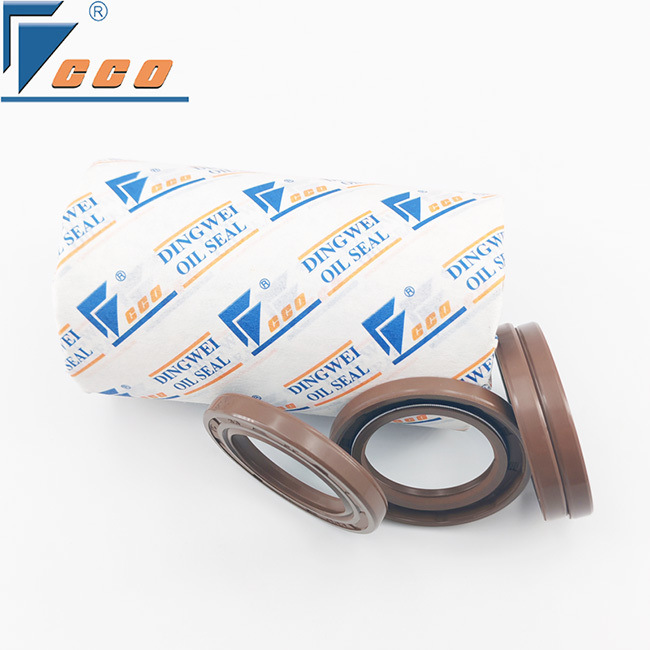

Standard FKM Skeleton Oil Seal Rotating Shaft Seal Brown Oil Seals Corrosion Resistant 0

Packaging

Standard FKM Skeleton Oil Seal Rotating Shaft Seal Brown Oil Seals Corrosion Resistant 2

Company Introduction

Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.

The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products. Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.

Standard FKM Skeleton Oil Seal Rotating Shaft Seal Brown Oil Seals Corrosion Resistant 3

Standard FKM Skeleton Oil Seal Rotating Shaft Seal Brown Oil Seals Corrosion Resistant 4
