El sello de aceite TYPE TC

TC TYPE Oil Seal Engineered to Deliver Consistent Performance in High Temperature

Todas Las Categorías

Sellos de aceite del reductor de engranajes

Sellos de aceite para servomotores

Sello de aceite personalizado

Éntrenos en contacto con

Miss. Elen

xiangteoilseal@163.com

18131923768

Contacto ahora

TC TYPE Oil Seal Engineered to Deliver Consistent Performance in High Temperature

Nombre De La Marca:	CCO
Número De Modelo:	1
MOQ:	10 piezas
Precio:	Negociable
Detalles Del Embalaje:	Embalaje estándar de exportación
Condiciones De Pago:	LC, D/A, D/P, T/T, Western Union, MoneyGram

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

Porcelana

Muestra:

Sí

tipo de labios:

LABIO DOBLE

Tamaño:

Tamaño estándar

Rango de temperatura:

-40 ° C a +120 ° C

Características:

Doble labio, caja de metal, cargado con resorte

Forma:

Redondo

Compatibilidad:

Amplia gama de fluidos y gases

Tipo de sello:

Capacidad de la fuente:

100000pcs/ mes

Resaltar:

TC TYPE oil seal high temperature

TC TYPE oil seal consistent performance

TC TYPE oil seal engine

Descripción de producto

1. Product Introduction

TC oil seal is a double-lip, spring-loaded, fully rubber-covered radial shaft seal (compliant with ISO 6194 / GB/T 13871). It is the most widely used rotary sealing component in the global market, responsible for retaining lubricating oil/grease and preventing the intrusion of dust, water, mud and other contaminants. This NBR-based standard TC seal is designed for medium working conditions, with excellent cost-performance, stable quality and wide compatibility, suitable for mass OEM supply and global aftermarket replacement.

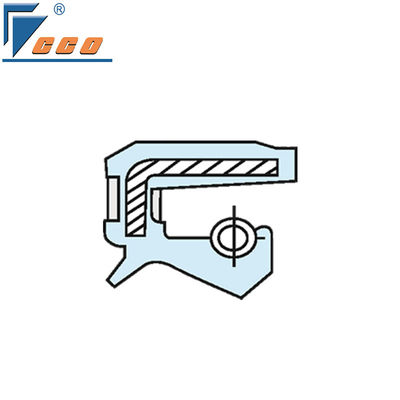

TC TYPE Oil Seal Engineered to Deliver Consistent Performance in High Temperature 0

2. Structural Features

Full rubber-coated metal skeleton: High-strength carbon steel insert, fully wrapped by rubber, no metal exposure, anti-corrosion, stable outer diameter interference fit, no damage to the housing bore.

Double lip design: Main sealing lip + auxiliary dust lip, forming a labyrinth effect, effectively isolating internal oil and external dirt.
Self-tightening garter spring: Provides continuous radial pressure, adapts to shaft eccentricity and wear, maintains long-term sealing performance.
Precision lip geometry: Optimized lip angle to form a stable micro oil film, reduce friction heat and wear, extend service life.
Standard installation size: Fully compatible with international standard bore and shaft fits (H7/h6), easy press-fit installation.

3. Material Parameter Table

Item	Specification
Rubber Material	NBR (Acrylonitrile-Butadiene Rubber)
Hardness	70±5 Shore A
Operating Temperature	-40°C ~ +120°C (continuous)
Max. Surface Speed	≤15 m/s
Working Pressure	Dynamic ≤0.03 MPa
Shaft Fit Roughness	Ra 0.2~0.4 μm
Compatible Media	Mineral oil, engine oil, gear oil, grease, diesel
Compression Set	≤20% (120°C × 22h)

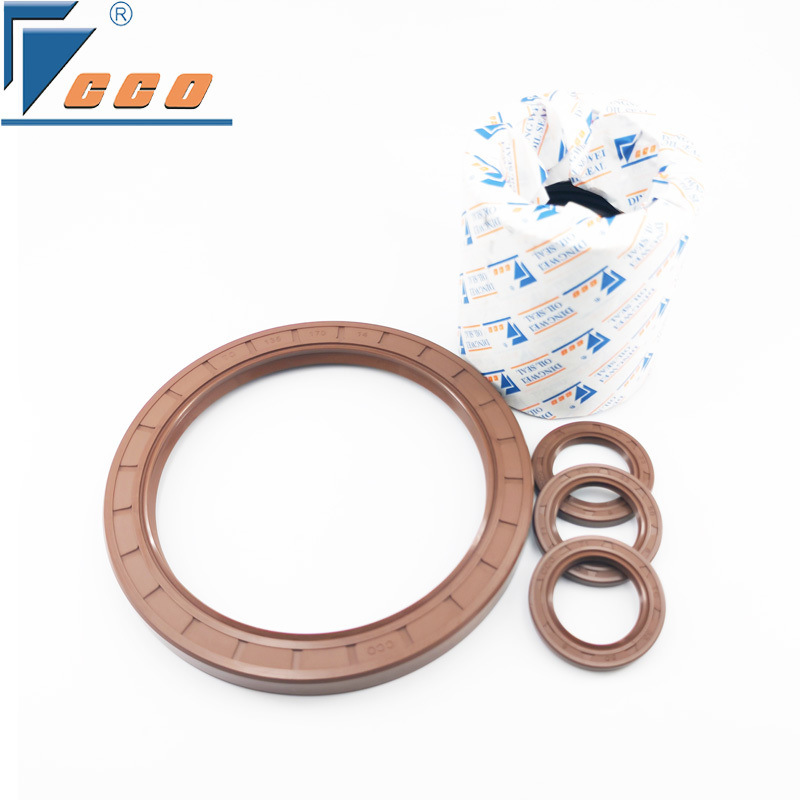

TC TYPE Oil Seal Engineered to Deliver Consistent Performance in High Temperature 2

4. Performance Advantages

Cost-effective & globally recognized: Low comprehensive cost, stable supply chain, suitable for large-scale procurement in Europe, America, Southeast Asia, Middle East and Africa.
Good oil resistance: Stable performance in common mineral oil systems, no swelling, no hardening, no cracking.
Strong anti-pollution ability: Double lip structure effectively blocks dust and water, suitable for outdoor machinery and vehicles.
Low friction & low heat: Stable oil film reduces heat generation, avoids early failure caused by high temperature.
Wide dimensional range: Shaft diameter φ6~φ200mm, width 4~15mm, can meet most general sealing needs.

TC TYPE Oil Seal Engineered to Deliver Consistent Performance in High Temperature 3

5. Application Fields

Automotive: Crankshaft front/rear seal, camshaft seal, gearbox input/output shaft seal, wheel hub, differential.
General industrial: Electric motor, fan, water pump, air blower, agricultural machinery, small hydraulic equipment.
Aftermarket: Universal replacement parts for light and medium-duty equipment worldwide.

TC TYPE Oil Seal Engineered to Deliver Consistent Performance in High Temperature 4
