TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing

Nombre De La Marca:	CCO
Número De Modelo:	1
MOQ:	10 piezas
Precio:	Negociable
Detalles Del Embalaje:	Embalaje estándar de exportación
Condiciones De Pago:	LC, D/A, D/P, T/T, Western Union, MoneyGram

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

Porcelana

Diámetro del eje:

6mm-300m m

Diámetro exterior:

10 mm a 310 mm

Forma:

Redondo

Diámetro exterior:

Varía por tamaño

Presión:

Presión baja a media

Rango de temperatura:

-40°C a 120°C

Rango de presión:

de una masa de más de 0,05 mPa

Método de instalación:

Presione ajuste

Capacidad de la fuente:

100000pcs/ mes

Resaltar:

TC TYPE oil seal for automotive

industrial oil seal for construction

TC TYPE oil seal with warranty

Descripción de producto

1. Product Overview

This series covers TC, SC, TB, SB, EC radial shaft oil seals (ISO 6194 compliant), designed for rotary sealing to retain lubricants and block contaminants. Each type differs in lip count, skeleton coating, spring design, and pressure resistance, covering low-to-medium pressure, general industrial, automotive, and aftermarket applications worldwide.

TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing 0

2. Core Type Definitions & Structural Features

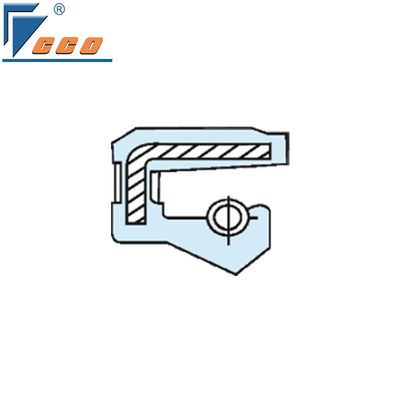

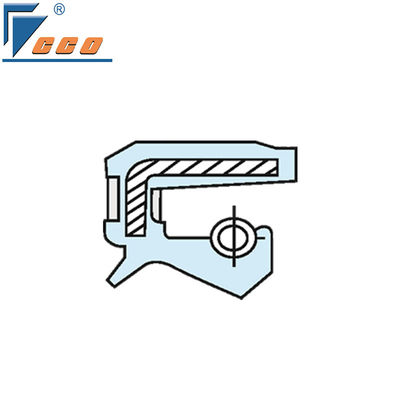

TC: Double lip (main seal + dust lip), full rubber-coated steel skeleton, spring-loaded primary lip; best for dusty environments, universal fit.
SC: Single lip, full rubber-coated skeleton, spring-loaded; cost-effective, clean indoor applications, no dust requirement.
TB: Single lip, bare metal (uncoated) steel skeleton, spring-loaded; high rigidity, stable fit, gearbox/pump internal use.

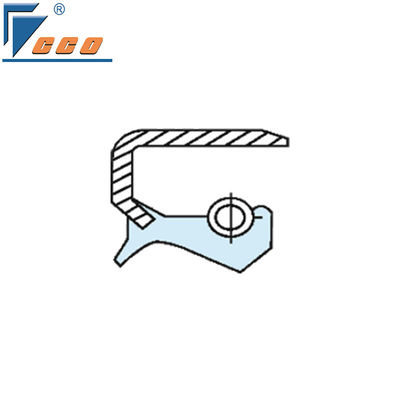

SB: Single lip, bare metal skeleton, springless; low friction, high-speed light-load, low-cost replacement.
EC: Double lip, thin rubber-coated skeleton, reinforced lip; medium pressure, anti-extrusion, hydraulic/pneumatic systems.

TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing 1

3. Performance

Type	Lip Count	Skeleton Coating	Spring	Max Pressure (Dynamic)	Temp Range (NBR)	Max Speed	Key Feature
TC	2 (Main+Dust)	Full Rubber	Yes	≤0.03 MPa	-40~+120°C	≤15 m/s	Dust-proof, universal
SC	1	Full Rubber	Yes	≤0.03 MPa	-40~+120°C	≤15 m/s	Cost-effective, clean
TB	1	Bare Metal	Yes	≤0.04 MPa	-30~+120°C	≤12 m/s	High rigidity, stable
SB	1	Bare Metal	No	≤0.02 MPa	-30~+100°C	≤20 m/s	Low friction, high speed
EC	2	Thin Rubber	Yes	≤0.1 MPa	-30~+130°C	≤12 m/s	Medium pressure, anti-extrusion

TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing 2

4. Key Advantages

Full type coverage: One supplier for all general sealing needs, reduces procurement complexity.
ISO standard dimensions (φ6~φ200mm), compatible with global OEM/aftermarket.
Material options: NBR (standard), FKM (high temp), EPDM (water/steam) available.
Easy press-fit installation, suitable for automated assembly lines.

TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing 3

5. Typical Applications

Automotive: Crankshaft, camshaft, gearbox, wheel hub.
Industrial: Motors, fans, pumps, gearboxes, agricultural machinery.
Aftermarket: Universal replacement for light/medium equipment.

TC TYPE Oil Seal Suitable for in Diverse Industrial Sectors Including Automotive Construction and Manufacturing 0
